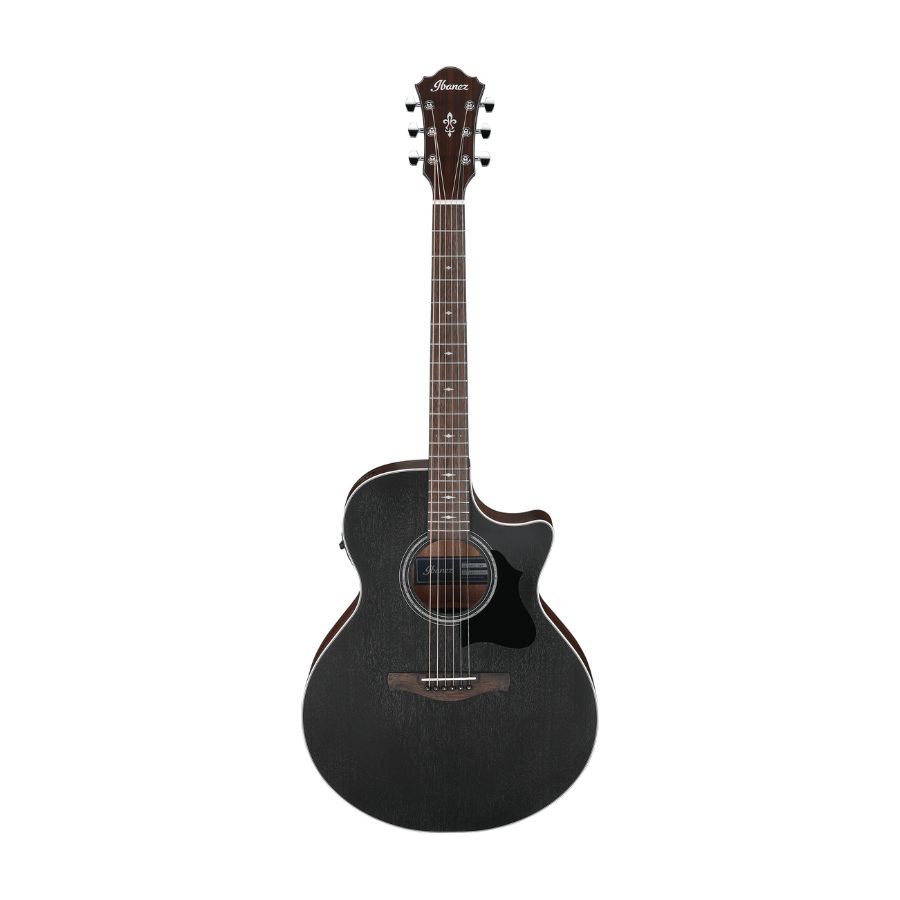

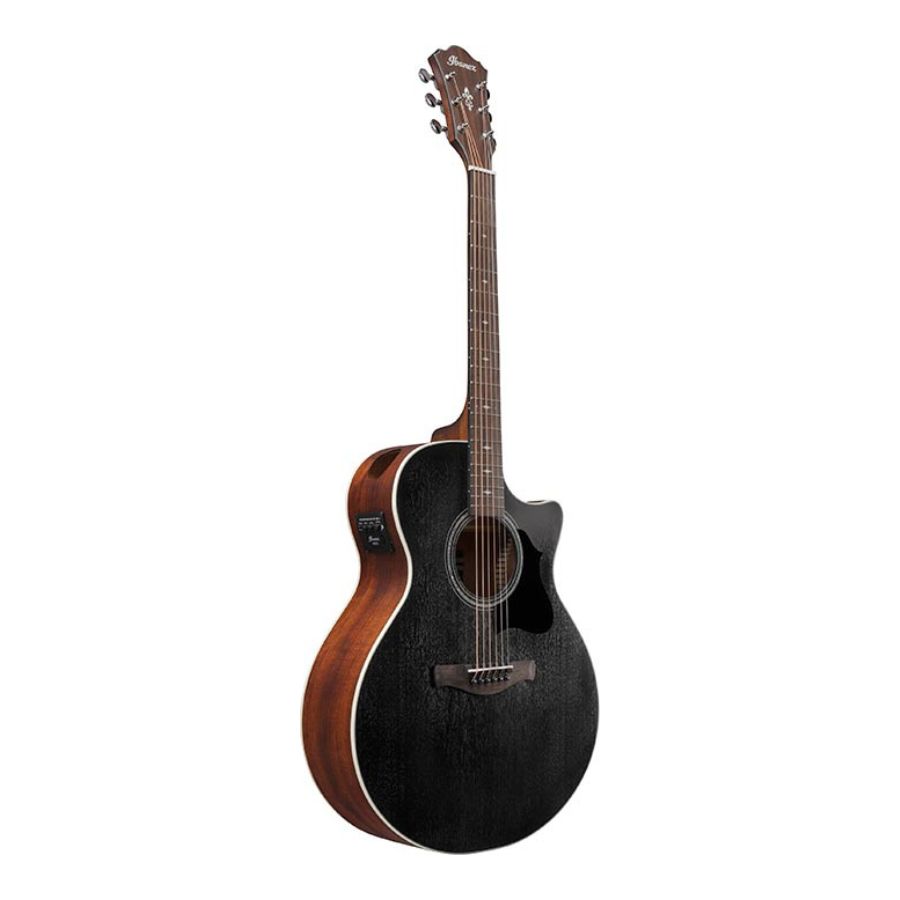

Ibanez AE140-WKH Shallow Cutaway Electro Acoustic Guitar, Weathered Black Open Pore Top

Description

Born from a long lineage and musical heritage, the acoustic guitar is steeped in tradition. But music continues to evolve, and musicians demand inspiring new tools with which to carve out their own signature sound. In that spirit, we introduce Ibanez AE, the flagship series of acoustic-electric guitars, offer supreme tone and playability, and represent another great chapter in the acoustic guitar tradition.

A.I.R.port

Through intensive research and development, we have designed the A.I.R.port with a unique internal structure that reflects sound waves and guides them to exit from a precisely positioned sound hole. As a result, players can monitor what they are playing more clearly, which enhances the overall playing experience.

Ibanez AEQ-TP2 preamp w/Onboard tuner

The Ibanez AEQ-TP2 preamp provides the extra punch of on-board EQ along with a convenient and easy-to-read digital tuner and 2-band EQ, located on the instrument’s upper bout.

AE body shape

Designed for projection, balance, and comfort, the AE’s perfectly crafted contemporary body shape offers the best of all worlds.

Laurel fretboard

The Laurel fretboard provides a rich and warm tone.

Comfort Grip Nyatoh neck

The Comfort Grip Nyatoh Neck contour provides superior playability.

Solid Okoume top

Solid Okoume top offers a full-bodied and warm mid-range and a bright tone.

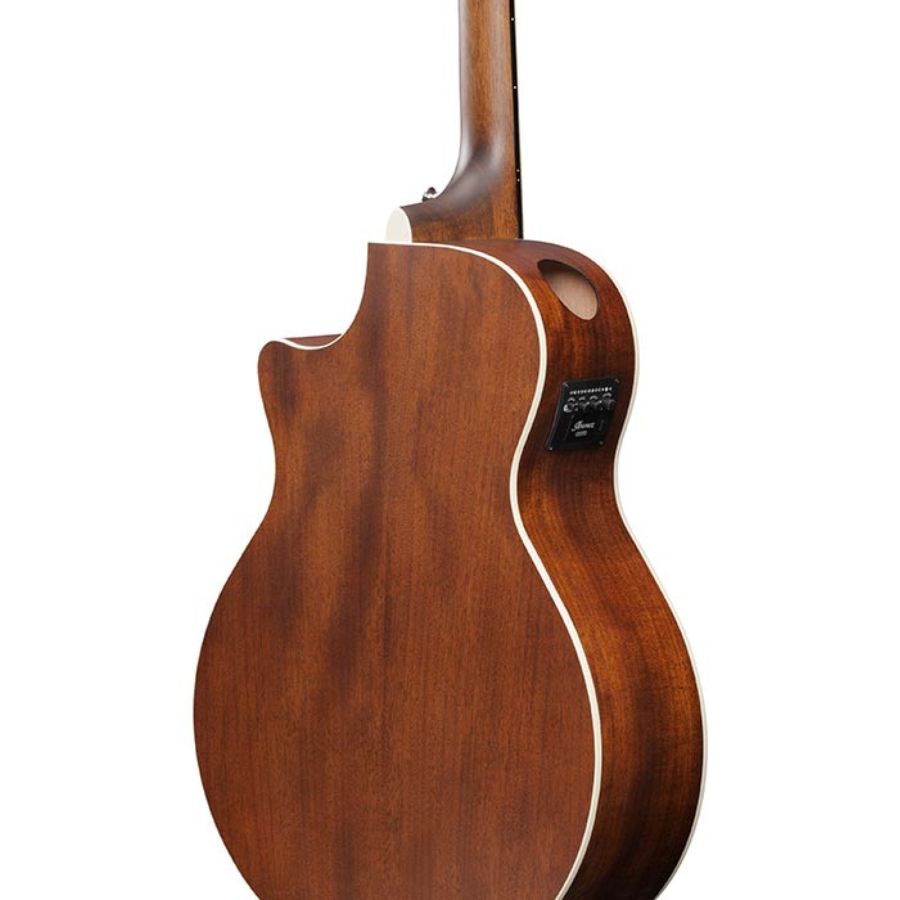

Okoume back and sides

The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.

Ibanez T-bar Undersaddle pickup

The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.

Laurel Scalloped bridge

The lightweight, scalloped bridge improves vibration efficiency for better resonance, as well as providing more flexibility in adjusting the action than usual bridge.

Specifications

• Body Shape: AE (Shallower Body Depth) Body
• Bracing: X-m Bracing
• Top: Solid Okoume Top
• Back & Sides: Okoume Back & Okoume Sides
• Neck: Comfort Grip/Nyatoh Neck
• Fretboard: Laurel Fretboard
• Bridge: Laurel Scalloped Bridge
• Inlay: Specially Designed Inlay
• Soundhole Rosette: Abalone

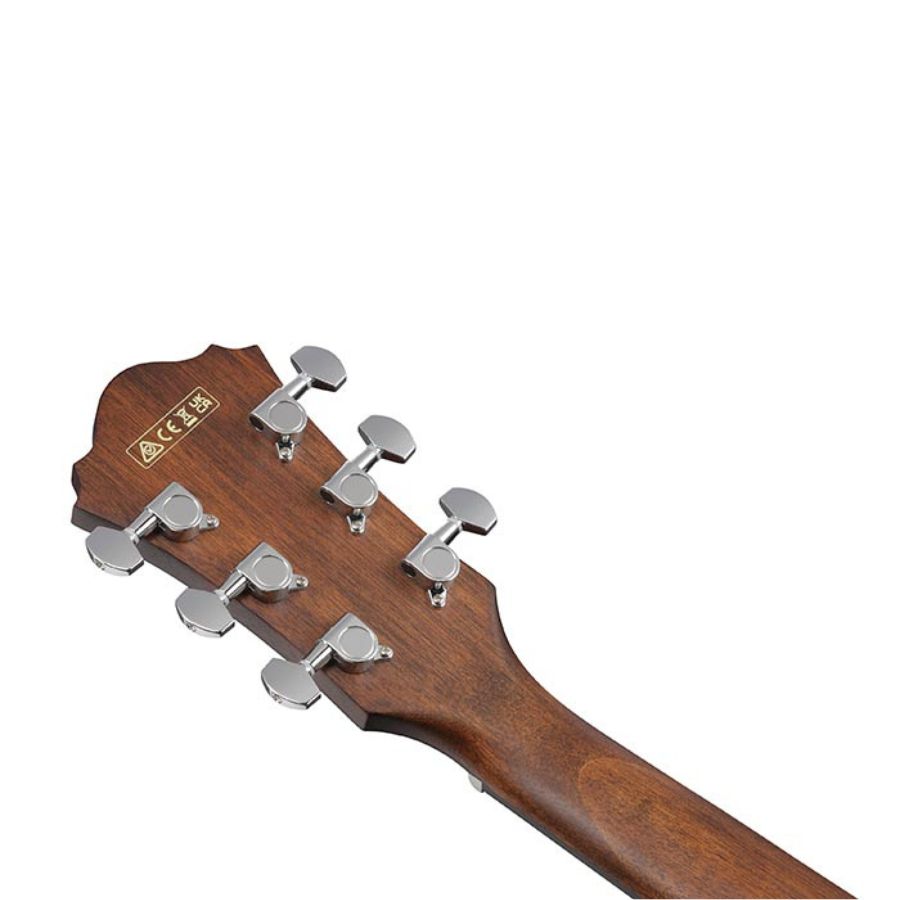

• Tuning Machine: Chrome Die-cast Tuners (18:1 Gear Ratio)
• Number of Frets: 20
• Bridge Pins: Ibanez Advantage™
• Strings: D’addario® Xtapb1253
• String Gauge: .012/.016/.024/.032/.042/.053
• String Space: 11mm
• Factory Tuning: 1e,2b,3g,4d,5a,6e
• Pickup: Ibanez T-bar Undersaddle
• Preamp: Ibanez Aeq-tp2 Preamp W/onboard Tuner
• Output Jack: Balanced Xlr & 1/4″ Outputs
• Battery: 9vx1

Neck Dimensions

• Scale :    634mm/25″
• a : Width    43mm at NUT
• b : Width    54.33mm at 14F
• c : Thickness    20mm at 1F
• d : Thickness    21mm at 7F
• Radius :    400mmR

Body Dimensions

• a : Length    20 1/8″
• b : Width    16 1/4″
• c : Max Depth    4 1/2″
