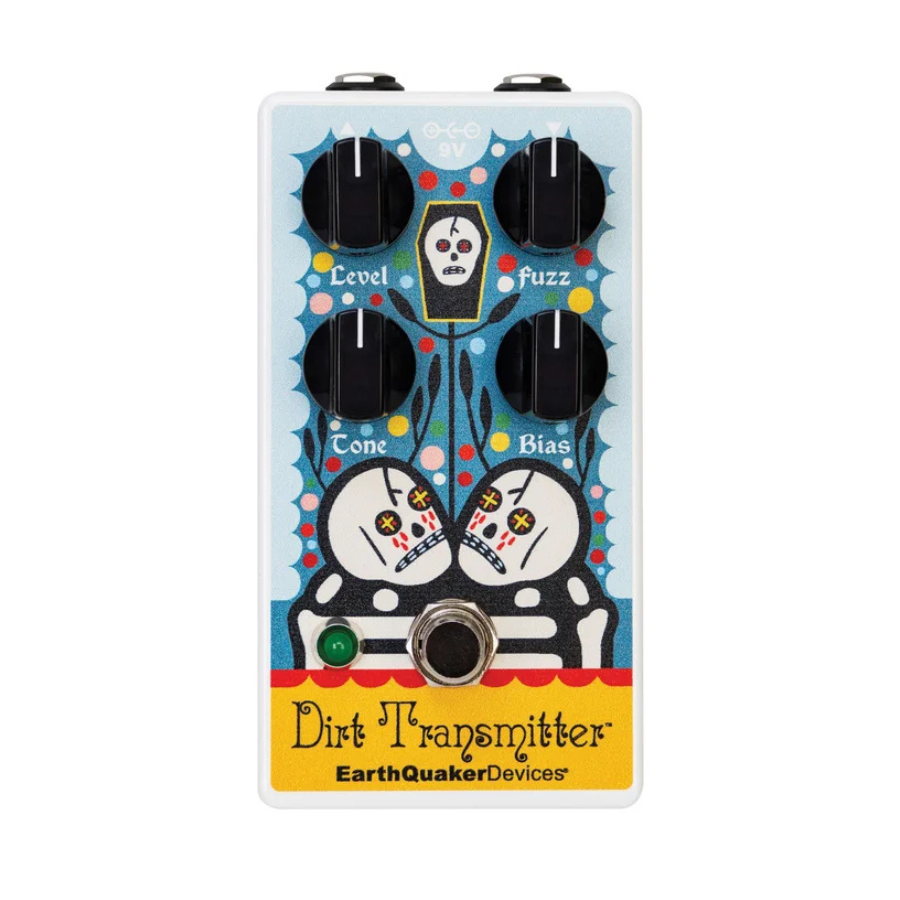

Earthquaker Devices Rancho de la Luna Dirt Transmitter™ Fuzz Driver Pedal

Description

The Dirt Transmitter is one of the oldest circuits in the EarthQuaker line. The design is Fuzz Face inspired, and the idea started when Jamie Stillman came across some very unique silicon transistors. These transistors are lower gain and have a warmth similar to germanium transistors when overdriven. But they also have the top-end grind typical of silicon-based fuzz pedals, which adds to the mids and helps cut through. The combination of these rare transistors and the starved voltage creates a wide variety of textures at the turn of a knob.

Specifications

Dimensions

4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs

Current Draw

3 mA

Input Impedance

500 kΩ

Output Impedance

100 Ω

Flexi-Switch® Technology

This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

• For standard latching operation: tap the footswitch once to activate the effect and then tap again to bypass.

• For momentary operation: hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay-based, it requires power to pass signal.

Artwork

Artwork by Mike Egan.

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. Do not run at higher voltages.
